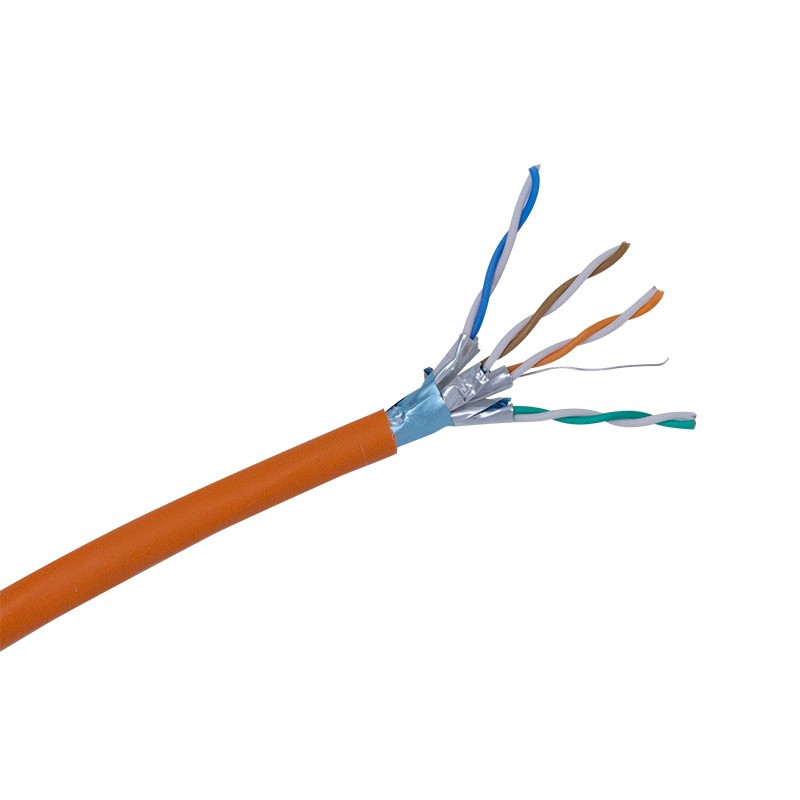

Connectix Category 6A F/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.
The cable consists of 4 screened pairs, drain wire and additional outer foil. It helps to alleviate the problems of NEXT and alien crosstalk. The sheath is a Low Smoke Zero Halogen (LSZH) material, as specified in many public buildings. This cable has a Euroclass rating of B2ca, so ideal where BS6701 compliance is required.
Supplied in 305m Box.
The cable consists of 4 screened pairs, drain wire and additional outer foil. It helps to alleviate the problems of NEXT and alien crosstalk. The sheath is a Low Smoke Zero Halogen (LSZH) material, as specified in many public buildings. This cable has a Euroclass rating of B2ca, so ideal where BS6701 compliance is required.
Supplied in 305m Box.
| Conforms to | ISO/IEC 11801;EN 50173-1, ANSI/TIA 568-C Category 6A, IEEE802.3an 10-Gigabit Ethernet |
| DC Resistance | < 9.38 Ω /100 m |
| Conductor | Solid - Bare copper wire (AWG 23) |
| Drain Wire | Tinned copper |
| Insulation Material | Skin-foam-skin PE Ø 1.45 mm |
| Insulation Diameter | 1.330 +/- 0.05mm |
| Screening Material | Alu / Mylar |
| Sheath Thickness | 0.65+/-0.1mm |
| Sheath External OD | 7.6 +/- 0.5mm |
| Sheath Surface | Clean |
| Sheath Colour | Orange - RAL 2004 |
| Sheath Material | LSZH(Complies RoHs) |
| Core Colour | 1. White/Blue, 2. White/Orange, 3. White/Green, 4.White/Brown |
| Surface Printing Colour | Black |
| Surface Printing Letter Height | 3.0 +/-0.3mm |
| Supplied in | 305m Box |
| DC Resistance Unbalance max | 5% |
| Capacitance Unbalance (pair to ground) | < 330 pF/100 m |
| Reaction to Fire | B2ca,s1a,d1,a1 |
Martin O - 27/03/2021
Good solid cable, much thicker than normal Ethernet cable due to shielding so need to allow for extra space in any trunking !!!
