- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 15km

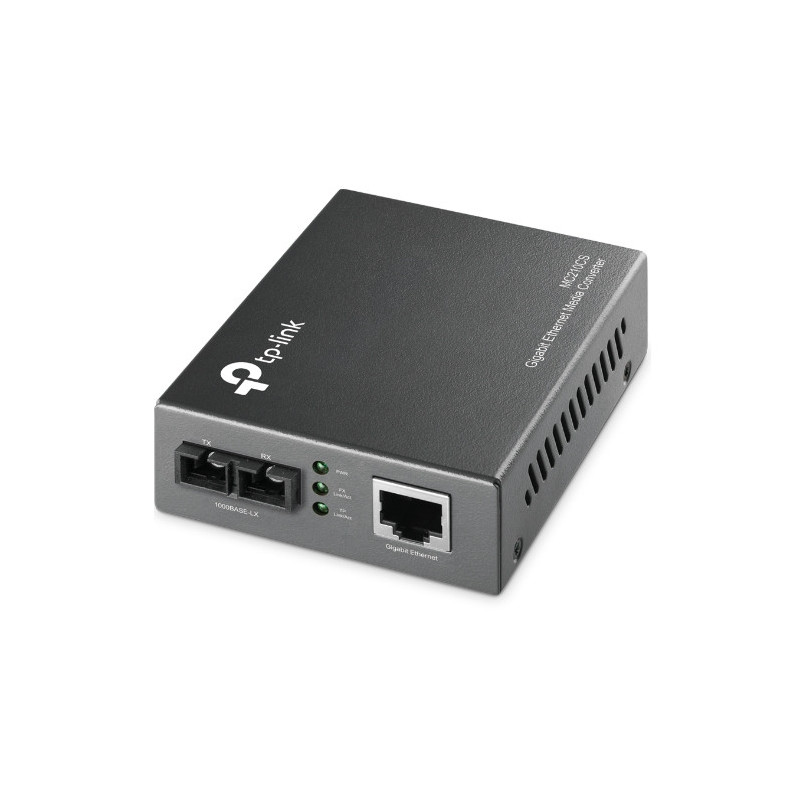

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’ system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 15km
The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’ system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
| Cabling technology | UTP 5e, 5 |
| Certification | FCC, CE |
| Compliance industry standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| Full duplex | Yes |
| I/O ports | 1x 1000M SC 1x 1000M RJ45 |
| LED indicators | Link |
| Maximum transfer distance | 15000 m |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage relative humidity range | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Wavelength | 1310 nm |
You might also like
-
Cat6 UTP RJ45 Through Coupler
-
ABS Splice Box
-
LC - SC Singlemode (9/125) Duplex Fibre...
-
Fiber Checker 2.5 mm to 1.25 mm Adapter
-
Pre-Terminated Fibre Cable
-
TP-LINK Gigabit SFP Media Converter
-
LC Duplex Bulkhead Adapter
-
LC Multimode Fibre Pigtails
-
Custom Multimode Duplex Fibre Patch Leads
-
Shielded FTP Cat5e RJ45 Ethernet Patch Lead
Similar products
-
TP-LINK MC100CM
-
TP-LINK 10/100Mbps Single-mode Media...
-
TP-LINK 10/100Mbps WDM Media Converter
-
TP-LINK 10/100Mbps WDM
-
TP-LINK Gigabit Multi-mode Media Converter
TP-LINK Gigabit Single-mode Media Converter
MC210CS 1x 1000M SC, 1x 1000M RJ45, IEEE 802.3ab & IEEE 802.3z
MC210CS
Out of Stock
€62.00
€50.40 Ex VAT.
