3G | N |
Antenna type | External |
Built-in processor | Y |
Cabling technology | 10/100/1000Base-T(X) |
Certification | FCC, CE, RoHS |
Depth | 117 mm |
DHCP client | Y |
DHCP server | Y |
DMZ support | Y |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
Height | 32 mm |
LED indicators | LAN,Power,Status,WLAN,WPS |
Networking standards | IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
On/off switch | Y |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Output voltage | 12 V |
Quality of Service (QoS) support | Y |
Receiver sensitivity | 11a 6Mbps:-93dBm;11a 54Mbps:-78dBm; 11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm; |
Reset button | Y |
Security algorithms | WEP,WPA,WPA-PSK,WPA2 |
Storage relative humidity (H-H) | 5 - 90 % |
Storage temperature (T-T) | -40 - 70 °C |
Transmit power | 20 - 23 dBmW |
Universal Plug and Play (UPnP) | Y |
USB port | N |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 5 (802.11ac) |
Width | 215 mm |
Ethernet WAN | Y |
WLAN data transfer rate (max) | 1200 Mbit/s |
SIM card slot | N |
3G/4G USB modem compatibility | N |
WLAN data transfer rate (first band) | 300 Mbit/s |
WLAN data transfer rate (second band) | 867 Mbit/s |
Port triggering | Y |
MU-MIMO technology | Y |
5G | N |
VPN server | PPTP VPN, OpenVPN |
Wi-Fi 5, AC1200, 2.4 / 5 GHz, Dual-Core CPU, 215 × 117 × 32 mm

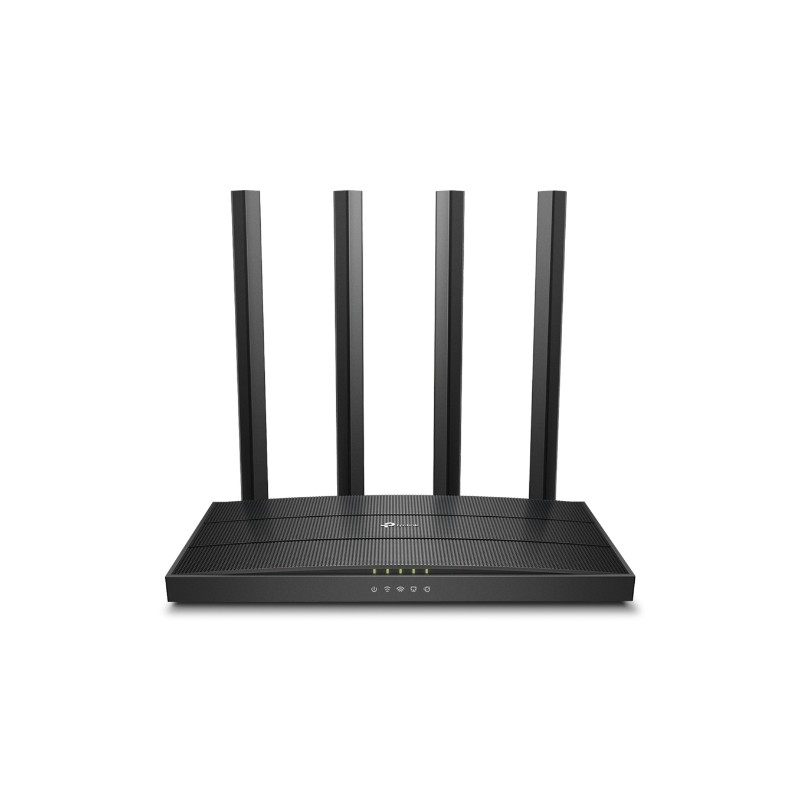

ARCHER C6 V3.2
