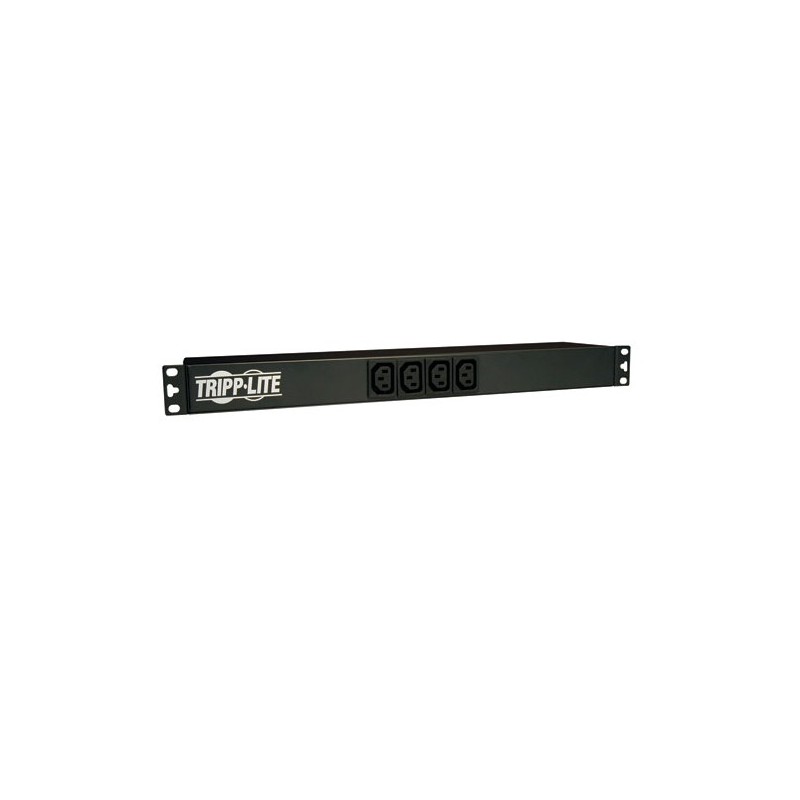

The PDUNV 1.6/3.8kW Single-Phase 100–240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUNV features 14 total outlets—four C13 in front and eight C13 and two C19 in the rear.



The C20 input plug with 10-foot (3 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment. Five C19 plug adapters with locking retainer clips are included for connection in a variety of power environments. The adapters convert the plug to C14 (connects to C13 100–240V), NEMA L6-20P (L6-20R 20A 208/240V), NEMA L5-20P (L5-20R 20A 120V), NEMA 5-20P (5-20R 20A 120V) or NEMA 5-15P (5-15R 15A 120V).



The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 16A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench with user-supplied hardware. It also supports toolless 0U vertical mounting with the optional PDUSIDEBRKT (sold separately).

- C20 input with 3.05 m (10-ft.) cord and 5 adapters

- 14 total outlets—12 C13 and 2 C19

- Switchless design prevents accidental shutdown

- Reversible all-metal housing

- 16A circuit breaker protects against overloads



- PDUNV 1.6/3.8kW Single-Phase 100–240V Basic PDU

- (5) C19 plug adapters

- Mounting brackets

- Owner’s manual



Reliable Single-Phase 16A 100–240V Power Distribution

- Versatile no-frills PDU for data centers, server rooms and network wiring closets

- 14 total outlets—4 C13 in front, 8 C13 and 2 C19 in rear

- C20 input with 3.05 m (10-ft.) cord and 5 plug adapters

- Rear-panel grounding lug

- 16A circuit breaker protects against overloads

- For connecting to AC power in various power environments

- Locking retainer clips included

- Adapters: C14, NEMA L6-20P, NEMA L5-20P, NEMA 5-20P and NEMA 5-15P

- Switchless Design prevents accidental shutdowns and costly downtime

- Reversible all-metal housing faces front or rear in rack

- Supports 1U horizontal or 0U vertical mounting in EIA-standard 19 in. racks

- Also mounts on wall, workbench or under a counter

- Supports toolless 0U vertical mounting with optional PDUSIDEBRKT (sold separately)
