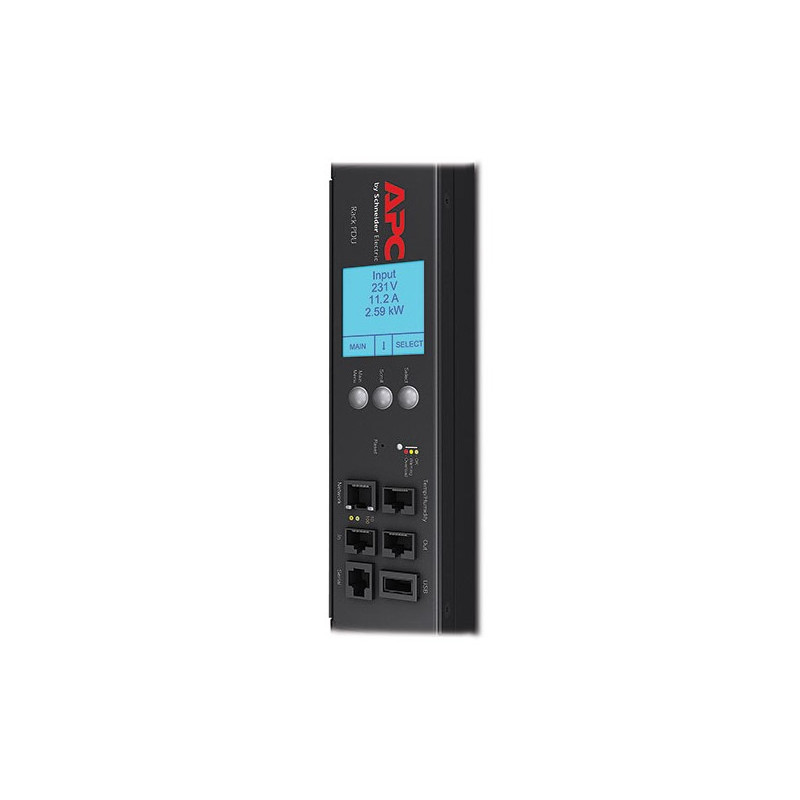

APC Metered Rack PDU AP8681
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
AC outlets quantity24 AC outlet(s)
Cable length1.83 m
CertificationEN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE
Colour of productBlack
Dimensions (WxDxH)56 x 51 x 1829 mm
Input frequency50/60 Hz
Maximum current16 A
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Nominal input voltage400 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Package dimensions (WxDxH)162 x 117 x 2038 mm
Package weight10500 g
PDU typesMetered
Rack mounting0U
RoHS complianceYes
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Weight8230 g

Similar products

  • APC Switched Rack PDU
    APC Switched Rack PDU
  • APC AP8659
    APC AP8659
  • APC AP8659EU3
    APC AP8659EU3

APC AP8681

Rack PDU 2G, Metered, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

AP8681

Out of Stock

€3,704.53
€3,011.81 Ex VAT.
