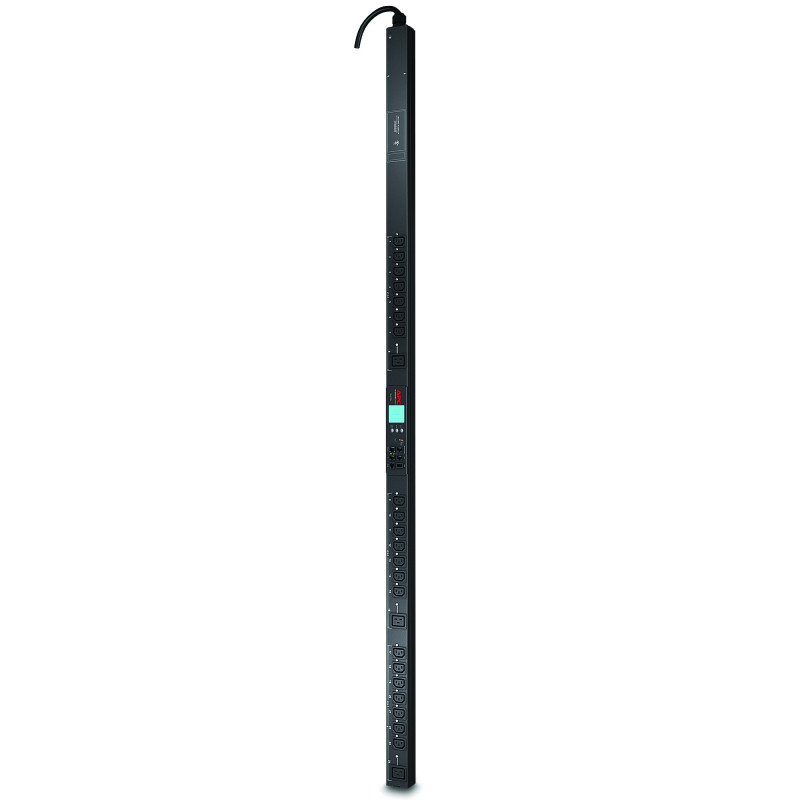

APC Switched Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V, 230V , Output Connections: IEC 320 C13,IEC 320 C19.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable.
| Cable length | 1.83 m |
| Colour of product | Black |
| Dimensions (WxDxH) | 56 x 46 x 1791 mm |
| Input connection type | IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E |
| Input frequency | 50/60 Hz |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
| Nominal input voltage | 400 V |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating relative humidity range | 5 - 95 % |
| Operating temperature (T-T) | -25 - 65 °C |
| Operating temperature range (T-T) | -25 - 65 °C |
| Output connections | (21) IEC 320 C13, (3) IEC 320 C19 |
| Package dimensions (WxDxH) | 165 x 114 x 2002 mm |
| Package weight | 8950 g |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage relative humidity range | 5 - 95 % |
| Storage temperature (T-T) | -5 - 45 °C |
| Storage temperature range (T-T) | -5 - 45 °C |
| Weight | 7000 g |
