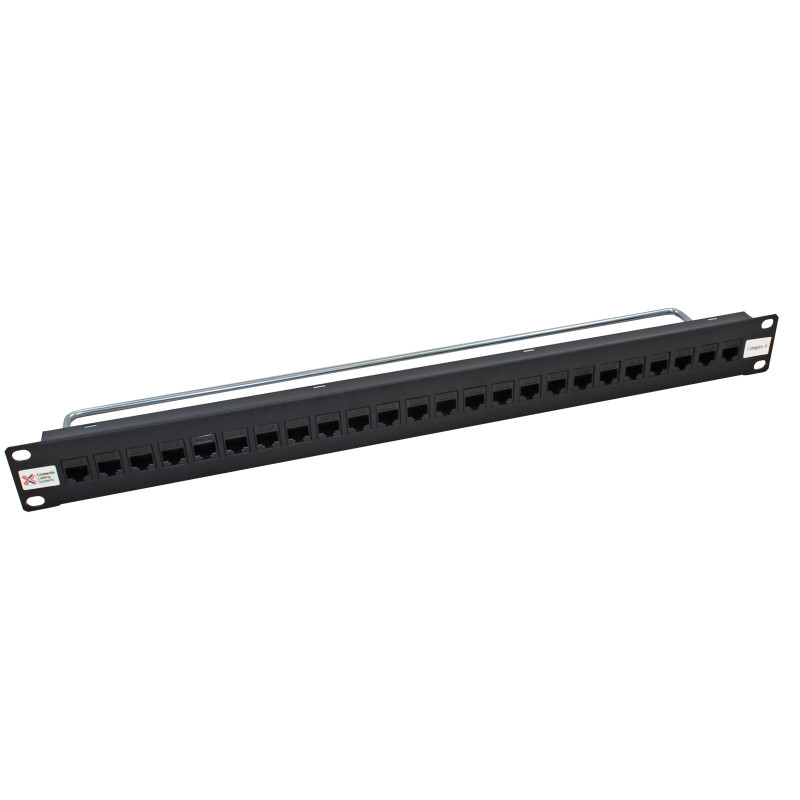

24 Port Thru-Coupler Cat5e UTP RJ45 Patch Panel
  • 24 Port Thru-Coupler Cat5e UTP RJ45 Patch Panel
  • 24 Port Thru-Coupler Cat5e UTP RJ45 Patch Panel

Connectix Through Coupler Panels offer Enhanced Category 5e system performance, and feature 24 ports in 1u. They offer the perfect solution when a panel mounted high performance, high density plug-to-plug connection is required.

Designed to match the other panels in the Connectix range the Coupler Panels have RJ45 sockets front and rear to facilitate through coupling.

Features:

  • High density, 24 ports in 1u
  • Enhanced Category 5e system performance
  • RJ45 to RJ45 connection



  • Specifcation:
  • Width - 483mm (19”)
  • Depth - 35mm
  • Height 24 way - 1u (44mm)
  • Fixing Centres - 467mm
  • Material - Mild steel sheet CR4
  • Finish - Black powder coat BS6496
  • RJ45 Sockets - Unshielded vertical jacks
  • PCB - Groups of 4 identical circuits on 1.6mm double sided PTH boards
  • Conforms to - ANSI/TIA-568-C Enhanced Category 5e Specification
Ports quantity24 Port
ShieldedNo
SpecificationCat5e
TerminationCoupler
U Height1u

Cat 5e Through Coupler Panel

Download (207.17k)
