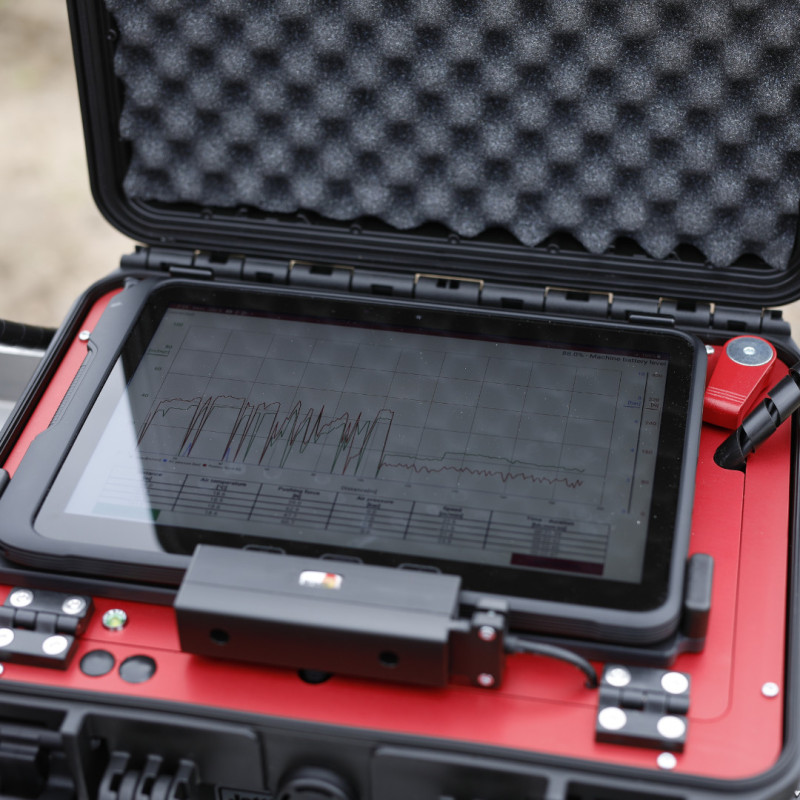

JetLogger is a professional documentation system for the installer who needs an efficient and professional electronic documentation of the cable blowing process. JetLogger has been developed together with installers, network owners and approved by German Telecom – ZTV TKNetz 40.

The JetLogger can be used with the following models: V2, V3, V0 and V0 HD.

Features & Benefits

• Individual input describing the job, cable and pipe/duct
• Automatic input of temperature, humidity and the exact position by GPS
• Monitoring every 1m:
• The air pressure
• Speed
• Distance
• Pushing force
• These parameters are presented live on the tablet giving the user a full overview of the process
• Automatic safety shutdown if optimal pushing force is exceeded
• A protocol in PDF format can be saved and sent to the network owner
• Memory for most used Cable and Duct data
• Via the GPS position a link to Google map makes it possible to see the exact location
• Built-in 4G modem with SIM card slot
• Storage of data is separate to cloud services but supports all cloud services such as dropbox, onedrive, google drive, apple icloud etc
• Language selection, ENG, FR, GER, SPA
• Change between Celsius / Fahrenheit and Metrics / Imperial (feet)
