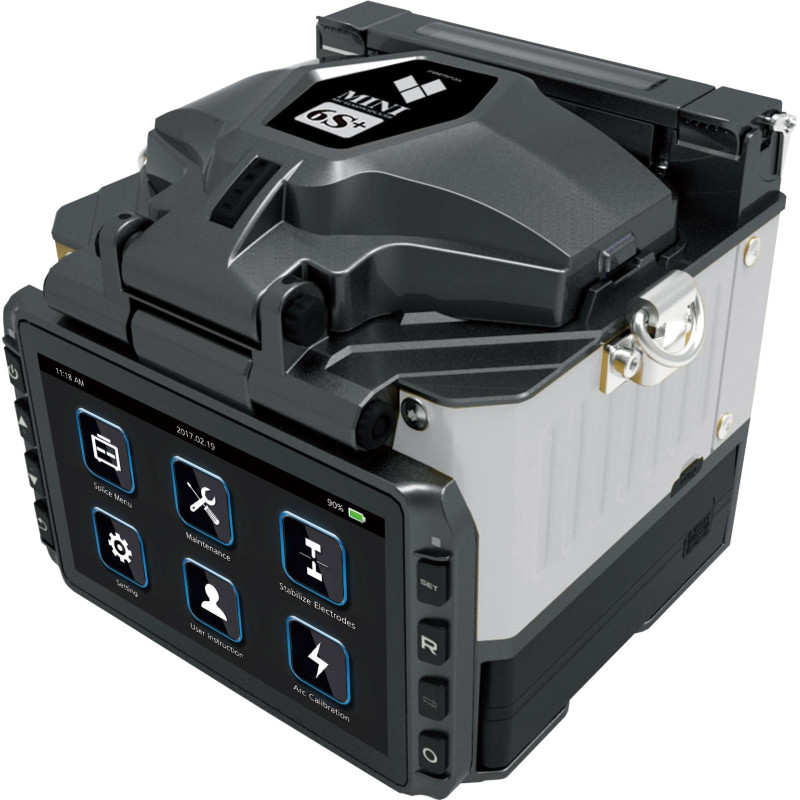

The Mini 6S+ comes with all the same excellent specification as the Mini 6s Core Alignment Fusion Splicer but with extra enhancements so that users spends even less time on each termination. This unit is still the same compact size for convenient transportation and storage & comes with a full range of accessories and spares.


Heating Time 15sec with 60mm sleeve	The Fast Splicing Time 7sec with SM fiber

Universial Holder 250㎛ / 900㎛ / 2~3Φ / Indoor	LED Injection System (No Mirrors)

400 cycles (Splicing & Heating) with Two Batteries	SOC Compatible

01MINI 6S+ Splicer
04 Power Cord
07 Car Cigar Cable
10 SOC Heater Block
13 Shoulder Strap
02 MINI 50G+ Cleaver
05 USB Cable
08 Cooling Tray
11 SOC Holder
14 User Manual CD
03 Cleaver Softcase
06 AC Adapter
09 Spare Electrode
12 2 Battery Packs
15 Hand Carrying Case

Power supply	AC 100-240V input or DC 9-14V
Size	122mm X 124mm X 138mm
Weight	1.49Kg (without battery)
Splicing Method	Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking System)
Splice Time	10s average SM / SM 7s Quick mode
Return Loss	>60 dB
Battery	Typical 200 Cycles (Splice & Heat) / single battery, 2 Batteries Standard
Average Loss	SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)
Electrode Lifespan	sub 5,500 arcs
Applicable Fiber	SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
Cleaved Length	Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimum
Coating Dlameter	100-1,000um
Cladding Dlarmeter	80-150um
Heating Programs	Factory installed mode : 11, User installable mode : 23
Heating Time	Typical 15s
Protection Sleeve	40mm, 60mm, SOC Connector Storage
Data Output	Micro HDMI-USB master device
Splice Programs	Factory installed mode: 33, User installable mode: 70+
Splice Memory	Up to 5,000 records and 2,000 splice images
Illumination	LED emitting white lignt(1 piece)
Monitor	Color 4.3inch LCD monitor, with Touch Screen (Tempered Glass)
Cameras	2 CCD camera system
Magnification	XY style : 150 power, X/Y : 300 power
Fiber Display	X/Y or XY, single X.Y
Wind Protection	The max wind speed 15m/s
Operating Environment	Elevation 0-5,000 meters, -20~60˚C, 0~95% relative humidity
Storage Condition	Temperature -20 to 40˚C, 0~95% relative humidity, battery -20~30˚C
Pull Test	1.96~2.25N (standard)
Attenuation Splicing	Range : 0.1dB ~ 20dB (0.1dB step)
