3G | N |
AC adapter included | Y |
Antenna type | External |
Built-in processor | Y |
Cables included | LAN (RJ-45) |
Certification | FCC, CE, RoHS |
Compatible operating systems | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,\nNetWare, UNIX or Linux |
DC-in jack | Y |
Depth | 135 mm |
DHCP client | Y |
DHCP server | Y |
DMZ support | Y |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Flow control support | Y |
Full duplex | Y |
Height | 38.6 mm |
IP address filtering | Y |
LED indicators | LAN,Power,WAN,WLAN |
Linux operating systems supported | Y |
Mac operating systems supported | Y |
Minimum system requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,\nNetWare, UNIX or Linux\nInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other\nJava-enabled browser\nCable or DSL Modem\nSubscription with an internet service provider (for in |
NAT functionality | Port Forwarding, Port Triggering, UPnP, DMZ |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
On/off switch | Y |
Output voltage | 12 V |
Package height | 73 mm |
Package weight | 890 g |
Package width | 330 mm |
Quality of Service (QoS) support | Y |
Quick installation guide | Y |
Reset button | Y |
Security algorithms | 64-bit WEP,128-bit WEP,WMM,WPA,WPA-PSK,WPA2,WPA2-PSK |
Universal Plug and Play (UPnP) | Y |
URL filtering | Y |
USB 2.0 ports quantity | 1 |
USB port | Y |
Web-based management | Y |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
Width | 260.2 mm |
Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professi |
Ethernet WAN | Y |
WLAN data transfer rate (max) | 1800 Mbit/s |
DSL WAN | N |
SIM card slot | N |
3G/4G USB modem compatibility | N |
WLAN data transfer rate (first band) | 574 Mbit/s |
WLAN data transfer rate (second band) | 1201 Mbit/s |
Web-based setup wizard | Y |

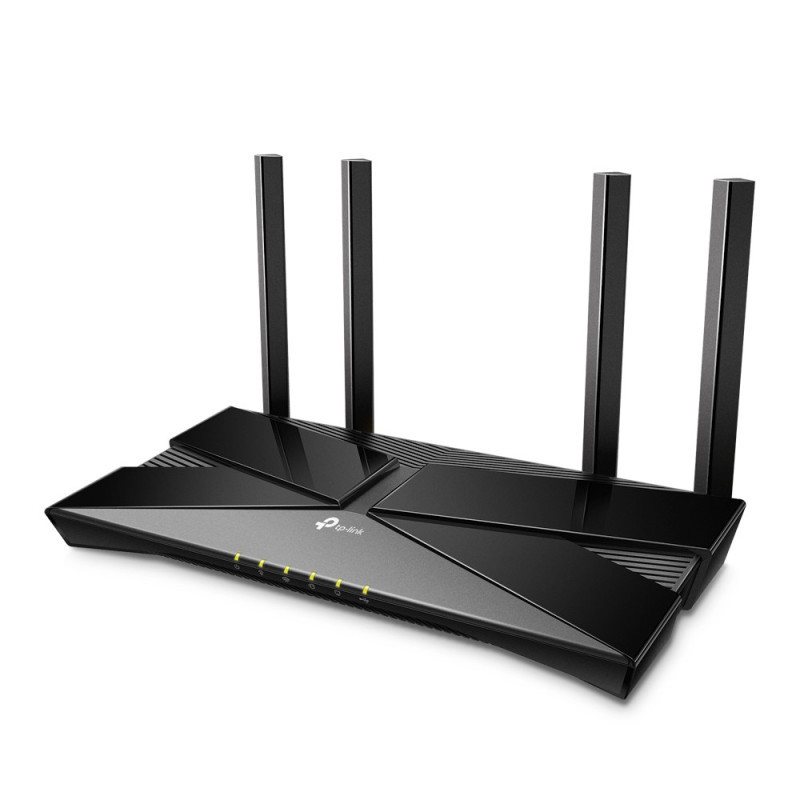

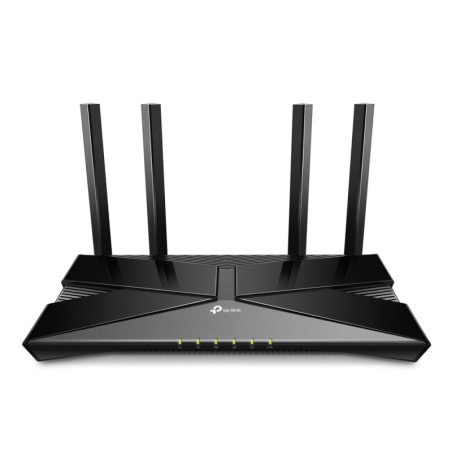

AX1800 Dual-Band Wi-Fi 6 Router, 1.Gbps, 802.11a/b/g/n/ac/ax, 4 x Gigabit Ethernet
ARCHER AX20
Out of Stock
