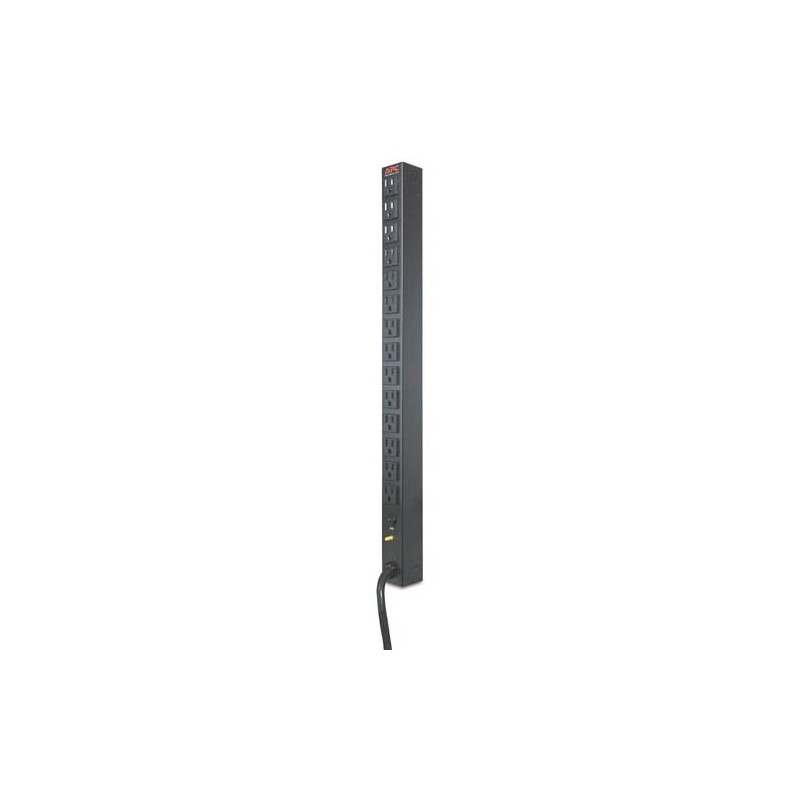

APC Basic Rack PDU AP9551
  • APC Basic Rack PDU AP9551
  • APC Basic Rack PDU AP9551

-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Cable length3.66 m
CertificationcUL,CSA,UL 1363,UL
Colour of productBlack
Dimensions (WxDxH)44 x 44 x 620 mm
Input connection typeNEMA L5-20P
Input frequency50/60 Hz
Load capacity2400 VA
Maximum input current per phase20 A
Maximum total current draw per phase20 A
Nominal input voltage120 V
Operating relative humidity range5 - 95 %
Operating temperature range (T-T)0 - 45 °C
Output connections(14) NEMA 5-15R
Source data-sheetIcecat.biz
Storage relative humidity range5 - 95 %
Storage temperature range (T-T)-25 - 65 °C
Weight2190 g
