More Info
Details
Spec Sheet

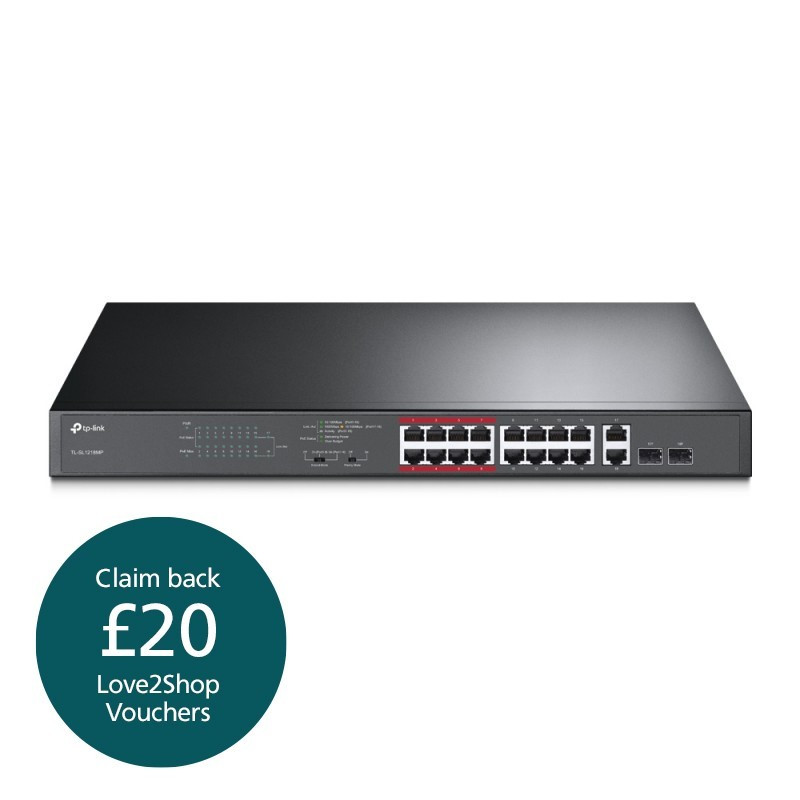

16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
Up to 250m data and power transmission under extend mode specially designed for surveillance system
Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports
Easy to use, with no configuration and installation needed

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
To guarantee the quality of sensitive applications like video monitor, TL-SL12128MP offers higher priority options for those IPC connected ports.

10G support	No
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cables included	LAN (RJ-45)
Certification	RoHS, FCC
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Depth	180 mm
Gigabit Ethernet (copper) ports quantity	2
Heat dissipation	741.15 BTU/h
Height	44 mm
LED indicators	LAN,PoE,Status
MAC address table	8000 entries
Networking standards	IEEE 802.3af,IEEE 802.3at
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	4.1 MB
Power consumption (typical)	18.7 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	1
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Switch type	Unmanaged
Switching capacity	7.2 Gbit/s
Width	440 mm
