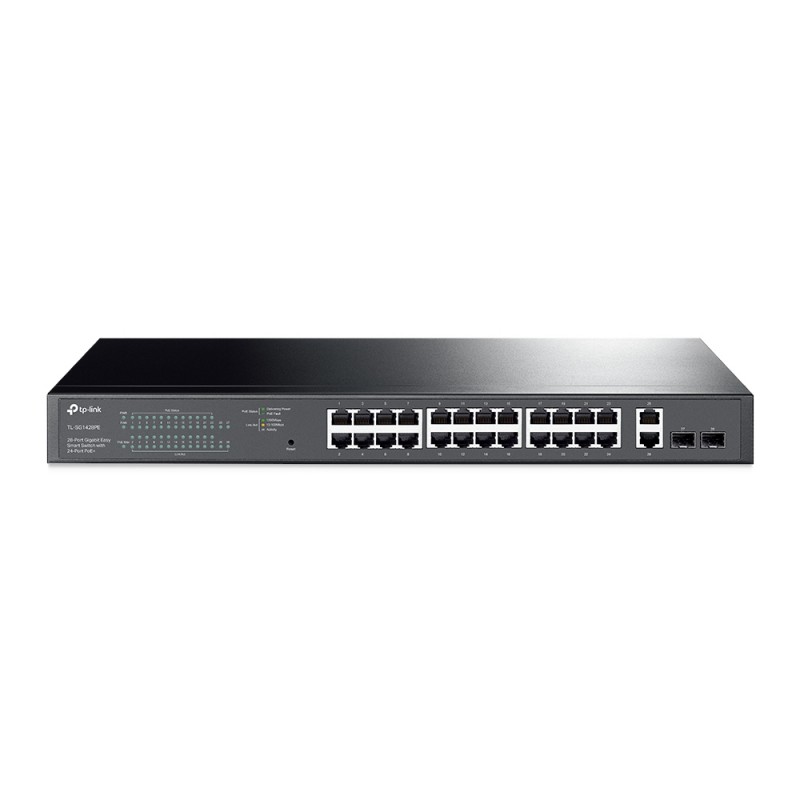

24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
Priority Mode helps to guarantee the quality of sensitive application like video monitoring
PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Intelligent power management can protect the switch from overload

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Making Management Easy

TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Certification	CE, FCC, RoHS
Interface	26 10/100/1000 Mbps RJ45 Ports, 2 Gigabit SFP Ports
MAC address table	8K
Management	Web-Based GUI, Easy Smart Configuration Utility
Mounting	Rack Mountable
Packet buffer memory	4.1 Mbit
Power supply	100-240V AC, 50/60 Hz
Switching capacity	56 Gbps
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Fan Quantity	2 Fans
Jumbo Frame	9 KB
Dimensions ( W x D x H )	17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Max Power Consumption	27 W (220/50Hz. no PD connected), 304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation	92.07 BTU/h (no PD connected), 1039.03 BTU/h (with 250 W PD connected)
Package Contents	TL-SG1428PE, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Environment	Operating Temperature: 0°C~50°C (32°F~122°F), Storage Temperature: -40°C~70°C (-40°F~158°F), Operating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5%~90% non-condensing
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/T...
PoE+ Ports(RJ45)	Standard: 802.3at/802.3af compliant, PoE+ Ports: 24 Ports, Power Supply: 250 W
Packet Forwarding Rate	41.7 Mbps
Quality of Service	Support Port-based 802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control
VLAN	Support up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
Physical Security Lock	Yes
L2 Features	IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery
