More Info
Details

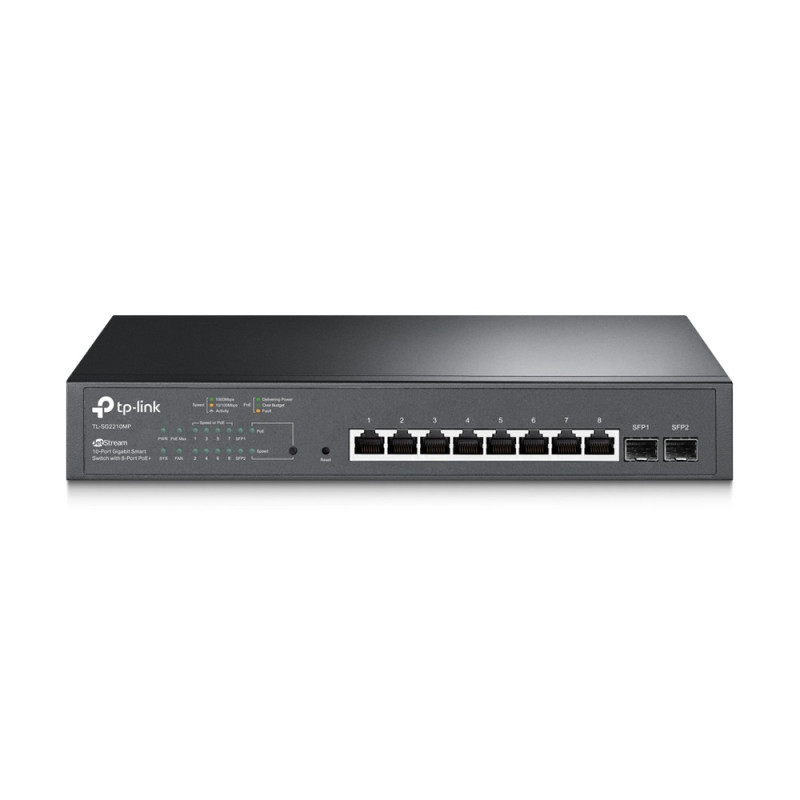

150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W^*.
Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Certification	CE, FCC, RoHS
Interface	8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX), 2× 100/1000 Mbps SFP Slots
MAC address table	8K
Mounting	Rack Mountable
Packet buffer memory	4.1 Mbit
Switching capacity	20 Gbps
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Fan Quantity	1
Jumbo Frame	9 KB
Dimensions ( W x D x H )	11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Max Power Consumption	12.2 W (110 V / 60 Hz with no PD connected), 173.9 W (110 V / 60 Hz with 150 W PD connected), Max Heat Dissipation • 41.63 BTU/h (with no PD connected), 539.35 BTU/h (with 150 W PD connected)
Package Contents	TL-SG2210MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Network Media	10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m), 100BASE-FX: MMF, SMF, 1000BASE-X: MMF, SMF
PoE+ Ports(RJ45)	Standard: 802.3at/af compliant, PoE+ Ports: 8 Ports, Power Supply: 150 W
Packet Forwarding Rate	14.9 Mpps
Quality of Service	802.1p CoS/ DSCP priority, 8 priority queues, Priority Schedule Mode, SP (Strict Priority), WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port/Flow based Rating Limit. Smoother Performance, Actions for flows, Mirror(to supported i...
L2 and L2+ Features	DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Static link aggregation, 802.3ad LACP, Up to 8 aggregation groups and up to 8 ports per group
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Physical Security Lock	Yes
Omada App	Yes
Centralized Management	Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
L2 Features	Link Aggregation, static link aggregation, Up to 8 aggregation groups and up to 8 ports per group, 802.3ad LACP, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Prot...
L2 Multicast	512 IPv4,IPv6 shared multicast groups, IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication, Static Group Config, MLD Snooping, MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Multicas...
IPv6 Support	IPv6 Dual IPv4/IPv6
